Product Details
Place of Origin: Shanghai, China
Brand Name: SENOVA (SEAVOVA)
Certification: CE
Model Number: RM-785
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Available upon request
Packaging Details: Carton
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 500 units/month
Model: |
RM-785 |
Product Name: |

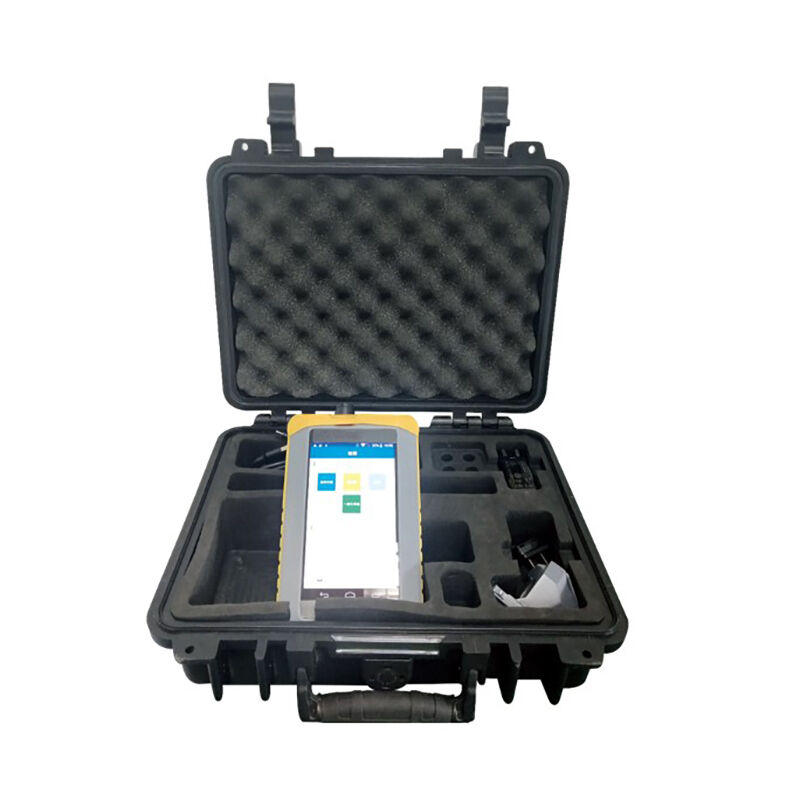

Handled / Portable Raman Spectrometer |
Laser Wavelength (nm): |
785±0.5 |
Laser Power: |
0-500mW |
Dimensions: |
180x100x48 (LxWxH,mm) |
Power Supply: |
AC95-250V/50-60Hz |
Model: |
RM-785 |
Product Name: |
Handled / Portable Raman Spectrometer |
Laser Wavelength (nm): |
785±0.5 |
Laser Power: |
0-500mW |
Dimensions: |
180x100x48 (LxWxH,mm) |
Power Supply: |
AC95-250V/50-60Hz |
Education, Biopharma, market supervision, material analysis, and the field of public safety.
| Model | RM-785 |
| Laser Wavelength (nm) | 785±0.5 |
| Stability (cm⁻¹) | <0.5 |
| Line Width (nm) | <0.06 |
| Spectral Range (cm⁻¹) | 150-3500 |
| Spectral Resolution (cm⁻¹) | 6 |
| Wavenumber Accuracy (cm⁻¹) | ±3 |
| Wavenumber Repeatability (cm⁻¹) | ≤0.5 |
| Spectral Intensity Repeatability | ≤1% |
| Laser Power | 0-500mW continuously adjustable (no laser beam emission when the instrument is not in detection mode). |
| Signal-to-Noise Ratio | ≥600:1(single-piece silicon secondary peak) |
| Integration Time | 1ms-30min Adjustable |
| Detector Type | linear cooling CCD array with 2048 effective pixels. |
| Display | 5" LCD with touch panel |
| Battery | Rechargeable lithium battery with a continuous working |
| Data Output | High speed USB,W-Fi |
| Data Format | Txt.csv.spc.pdf |
| Power Supply | AC95-250V/50-60Hz |
| Operating System | Android |
| Positioning Function | GPS |
| Weight (kg) | <1 |
| Dimensions (LxWxH, mm) | 180x100x48 |
| Operating Temperature | 5-45° |
| Protection Rating | Industrial-grade IP67 dustproof and waterproof protection. |
