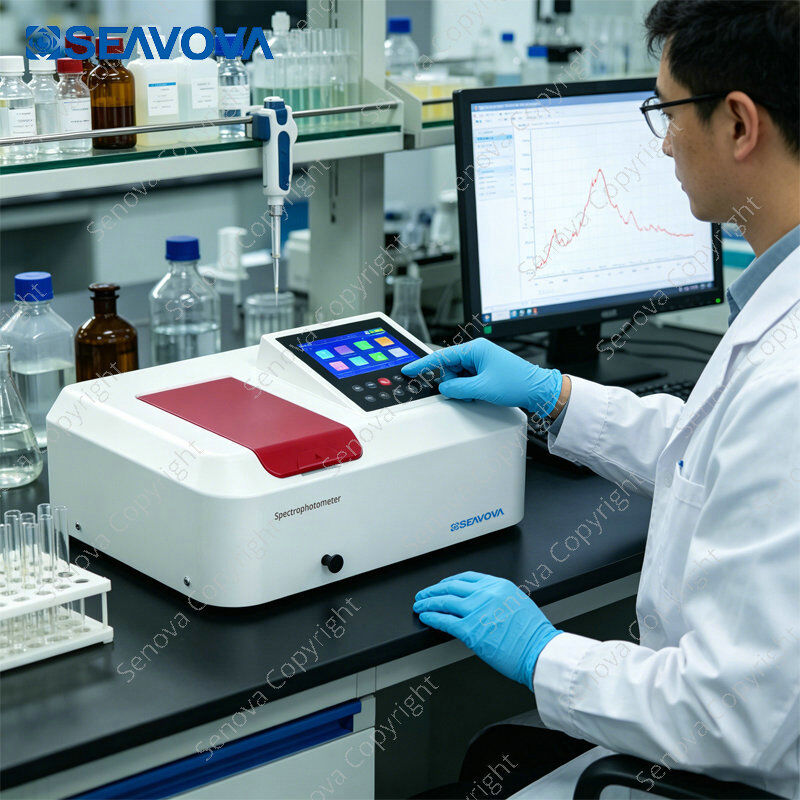

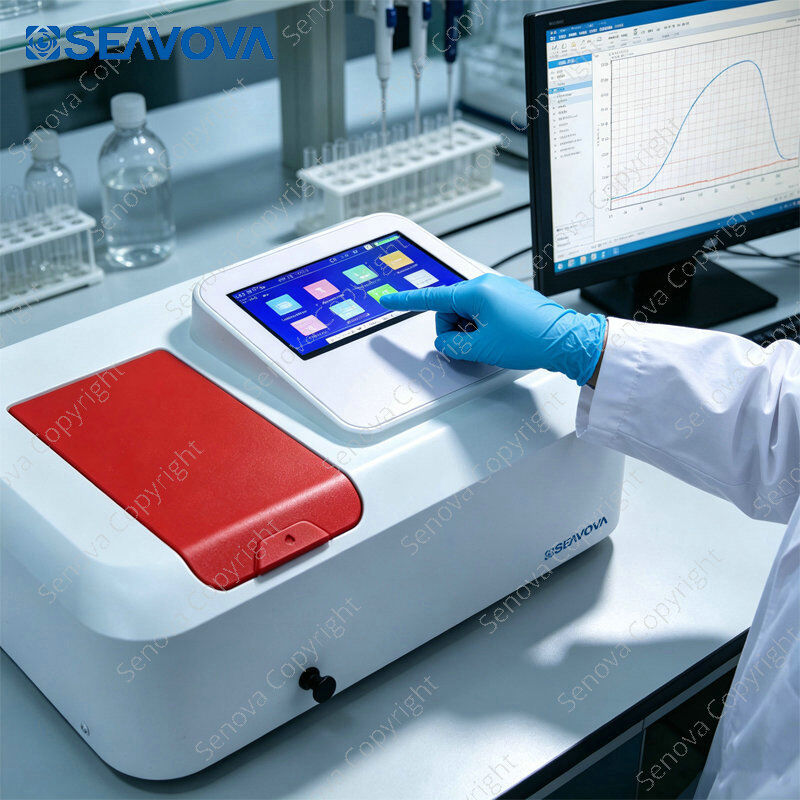

Single Beam Visible Spectrophotometer VA-500C with 2nm Bandwidth and 320-1100nm Wavelength

Name: Single Beam Visible Spectrophotometer VA-500C with 2nm Bandwidth and 320-1100nm Wavelength
Brand: SENOVA BIOTECH (SHANGHAI) CO., LTD.
SKU: VA-500C
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: SENOVA (SEAVOVA)

Certification: CE

Model Number: VA-500C

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Available upon request

Packaging Details: Carton

Delivery Time: 10-20 working days

Payment Terms: T/T

Supply Ability: 500 units/month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:

Product Name:	Visible Spectrophotometer	Optical System:	Single Beam With 1200-line/mm Grating
Wavelength Range:	320-1100nm	Display:	4.3" Touch Screen LCD
Dimensions:	460x310x180mm	Power Supply:	AC90-250V/50-60Hz

Product Name:	Visible Spectrophotometer
Optical System:	Single Beam With 1200-line/mm Grating
Wavelength Range:	320-1100nm
Display:	4.3" Touch Screen LCD
Dimensions:	460x310x180mm
Power Supply:	AC90-250V/50-60Hz

Description

Single Beam Visible Spectrophotometer VA-500C with 2nm Bandwidth and 320-1100nm Wavelength

Single Beam Visible Spectrophotometer VA-500C

with 2nm Bandwidth and 320-1100nm Wavelength

Main Features:

Superior C-T Monochromator Design: Engineered for elite-level precision, consistent reproducibility, and unwavering measurement stability.
Cutting-Edge ARM Micro-Architecture: High-performance processing and circuitry deliver dependable analytics with seamless USB transfers and Bluetooth printing.
Aerospace-Grade Optical Foundation: A solid aluminum alloy chassis combined with refined mirror mounts guarantees permanent alignment of the optical path.
4.3" touch screen LCD: Features a vibrant color touchscreen and physical keys, optimized for effortless navigation even while using laboratory gloves.
Exacting Production Standards: Every device undergoes a rigorous 32-point quality inspection to ensure maximum structural integrity and long-term resilience.
Expanded Onboard Data Archiving: Features a high-capacity internal database capable of holding vast quantities of experimental results.
Versatile Multi-Cell Configuration: Includes a manual 4-position holder adjustable for 10-50mm path lengths to support diverse cuvette dimensions.
Simplified Light Source Maintenance: Specifically designed flange-positioned access ports allow for the rapid and precise swap-out of Tungsten bulbs.
Broad Spectrum Photometric Range: Capable of executing transmittance and absorbance assays from 320-1100nm with instantaneous concentration calculation.
Advanced Concentration Modeling: Utilizes automated standard curves or manual coefficients with support for high-order mathematical fitting and retrieval.
Dynamic Spectral Analysis: Performs qualitative wavelength sweeps featuring integrated tools for peak identification, zoom scaling, and graph overlays.
Reaction Rate Monitoring: Facilitates kinetic time-course studies with automated velocity calculations and sophisticated data smoothing techniques.
Biomolecular Quantification: Dedicated mode for assessing DNA and protein purity and density through pre-programmed algorithmic formulas.
Simultaneous Multi-Point Testing: Allows for the programming of numerous wavelength coordinates to evaluate sample absorbance or transparency in batch.
Laboratory Compliance Verification: Built-in GLP protocols validate stray light and photometric precision, generating ready-to-export certification data.
Intelligent Utility Module: Includes automated wavelength zeroing, lamp life tracking, wireless connectivity, and manual illumination toggling.

Packing list:

Spectrophotometer x1
10-50mm 4-position adjustable holder x1
1cm Glass Cuvette x 4
Dust Cover x1

Optional:

Printer
PC control software for 3D graphical analysis and spectral overlay analysis

Specifications

Specifications
Mode	VA-500C
Optical System	Single beam
Optical System	with 1200-line/mm grating
Wavelength range(nm)	320-1100
Spectral Bandwidth(nm)	2.0
Wavelength Accuracy(nm)	±0.3
Wavelength Repeatability(nm)	≤0.1
Transmittance Accuracy(%T)	≤0.1
Stray Light(%T)	≤0.05 @360nm
Noise(%T)	0%≤0.05:100%≤0.1
Draft(Abs)	≤0.002
Baseline fitness(Abs)	±0.002
Spectral Range	0-200%T,-3.010~3A,0-9999C(0-9999F)
Test Mode	Abs Trans Reflectance Energy
Light Source	Tungsten lamp
Monitor	4.3” LCD with touch screen
Language	English,Russia,Spanish
Data Output	Flask Disk, Bluetooth, Upload to PC by USB port
Data Format	CSV
Sample Holder	10-50mm adjustable
Power Supply	AC90-250V/50-60Hz
Dimensions (L×W×H, mm)	460x310x180
Weight (Kg)	11
