Product Details
Place of Origin: China
Brand Name: Senova
Certification: CE
Model Number: NovaIncu-1000A
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Available upon request
Packaging Details: plywood case
Delivery Time: 5-20 working days
Payment Terms: T/T
Supply Ability: 100 units

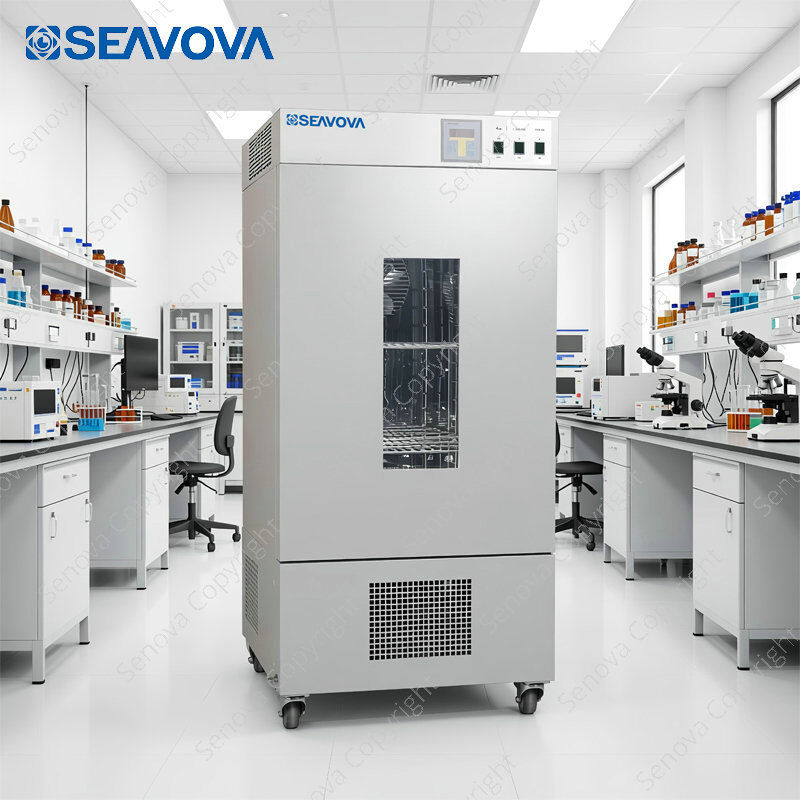

1000L Low Temperature Refrigerated BOD Incubator NovaIncu BOD-1000A(Programmable)
Features:
Specifications
|
Model |
NovaIncu BOD-1000A |
|
|
Chamber volume (L) |
1000 |
|
|
Temp. Control Range |
0℃~70℃ |
|
|
Temperature |
Resolution |
0.1℃ |
|
Fluctuation |
±0.5℃ |
|
|
Uniformity |
± 1.5℃ at 37℃ |
|
|
controller |
PID microprocessor control, soft touch, LED display |
|
|
Sensor |
PT100 |
|
|
Timer |
Power-on, power off and working. Timing range: 1min-99hr |
|
|
Material |
Internal |
304 stainless steel |
|
External |
Steel (powder coating) |
|
|
Dimensions (WxDxH,cm) |
Internal |
95x90x115 |
|
External |
110x115x198 |
|
|
Net Weight(Kg) |
300 |
|
|
Consumption Power(W) |
3100 |
|
|
Shelf Size(mm) |
928x880 |
|
|
Shelf Qty(Standard/Max.) |
3/18 |
|
|
Power Supply |
220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) |
|
| Model | NovaIncu MD-80A/80B *Notes | NovaIncu MD-150A/150B *Notes | NovaIncu MD-250A/250B *Notes | NovaIncu MD-360A/360B *Notes | NovaIncu MD-450A/450B *Notes | NovaIncu MD-750A/750B *Notes | NovaIncu MD-1000A/1000B *Notes | |
| Chamber volume(L) | 80 | 150 | 250 | 360 | 450 | 750 | 1000 | |
| Temp. Control Range | 0℃~70℃ | |||||||
| Temperature | Resolution | 0.1℃ | ||||||
| Fluctuation | ±0.5℃ | |||||||
| Uniformity | ± 1℃ at 37℃ | ± 1.5℃ at 37℃ | ± 2℃ at 37℃ | |||||
| controller | PID microprocessor control, soft touch, LED display | |||||||
| Sensor | Pt 100 resistor | |||||||
| Timer | Power-on, power off and working. Timing range: 1min-99hr | |||||||
| Material | Internal | Mirror polished 304 stainless steel | ||||||
| External | Steel (powder coating) | |||||||
| Dimensions (WxDxH,cm) | Internal | 40*40*50 | 50*40*75 | 55*50*90 | 65*60*95 | 70*65*95 | 85*80*110 | 95x90x115 |
| External | 55*65*118 | 65*65*143 | 70*75*158 | 80*85*173 | 85*91*173 | 100*115*188 | 110x115x198 | |
| Net Weight(Kg) | 82 | 92 | 120 | 160 | 195 | 235 | 300 | |
| Consumption Power (W) | 470 | 670 | 900 | 1110 | 1530 | 2260 | 3100 | |
| Shelf Size(mm) | 378*380 | 478*380 | 488*480 | 628*580 | 640*628 | 784*780 | 928*88 | |
| Shelf Qty (Standard/Max.) | 2/5 | 2/10 | 2/13 | 3/13 | 3/13 | 3/17 | 3/18 | |
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |||||||
*Notes:
MD80B/150B/250B/360B/450B/750B have10-segment temperature control program to realize temperature curve program running. The inflow and outflow air speed is also adjustable.
Introduction about incubator
The development of biosimilars—biologic medicines highly similar to an existing approved reference product—requires rigorous analytical comparison. Incubators support several key assays in this characterization.
Cell-based potency assays are central. The biosimilar and reference product are applied to sensitive cell lines (e.g., those proliferating in response to a growth factor) cultured in CO2 incubators. The biological activity (potency) is measured and must be equivalent. Forced degradation studies also use incubators. Samples of both products are stressed under controlled conditions—elevated temperature (e.g., 25°C, 40°C) in stability chambers or incubators—and then analyzed for changes in aggregates, fragments, or charge variants compared to the reference.
Furthermore, incubators are used in assays to detect host cell proteins (HCPs) or in ELISA-based immunogenicity risk assessments. The precision and documentation capabilities of modern incubators are vital here. Any difference in incubation conditions could lead to variable cell responses or degradation profiles, potentially misinterpreted as a product difference. Therefore, the incubator contributes to the “totality of evidence" required by regulators to demonstrate that a biosimilar is as safe and effective as its originator, ensuring patient access to more affordable biologic therapies.
