Product Details
Place of Origin: China
Brand Name: Senova
Certification: CE
Model Number: DBS-602
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Available upon request
Packaging Details: plywood case
Delivery Time: 5-20 working days
Payment Terms: T/T
Supply Ability: 100 units
Product: |
Orbital Shaker |
Orbit Diameter: |
25 Mm |
Load Capacity: |
1000mlx6, 500mlx15, 250mlx25, Or Roller |
Voltage: |
200-240V/100-120V |
Product: |
Orbital Shaker |
Orbit Diameter: |
25 Mm |
Load Capacity: |
1000mlx6, 500mlx15, 250mlx25, Or Roller |
Voltage: |
200-240V/100-120V |
| Control | P.I.D. |
| Display | LCD |
| Program Control | 8-segment programming (user programmable) |
| Safety Protection | Automatic stop and start, timing, time display, power-off recovery, parameter memory |
| Convection Mode | Natural Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft Drive |
| Speed Range(rpm) | 30-300 |
| Speed Accuracy | ±1rpm |
| Orbit | Φ25mm |
| Timing Range | 0-999.59 hr/Continuous |
| Standard Configuration | 1000mlx12, 500mlx15, 250mlx20, or roller |
| Platform Size(mm) | 500x400mm |
| Platform Qty. | 1 PC |
| Net Weight | 40Kg |
| Overall Dimensions | 550x480x280(DxWxH,mm) |
| Packing Size | 60x53x38(LxWxH,cm) |
| Power | 60W |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Construction | ABS engineering plastic |

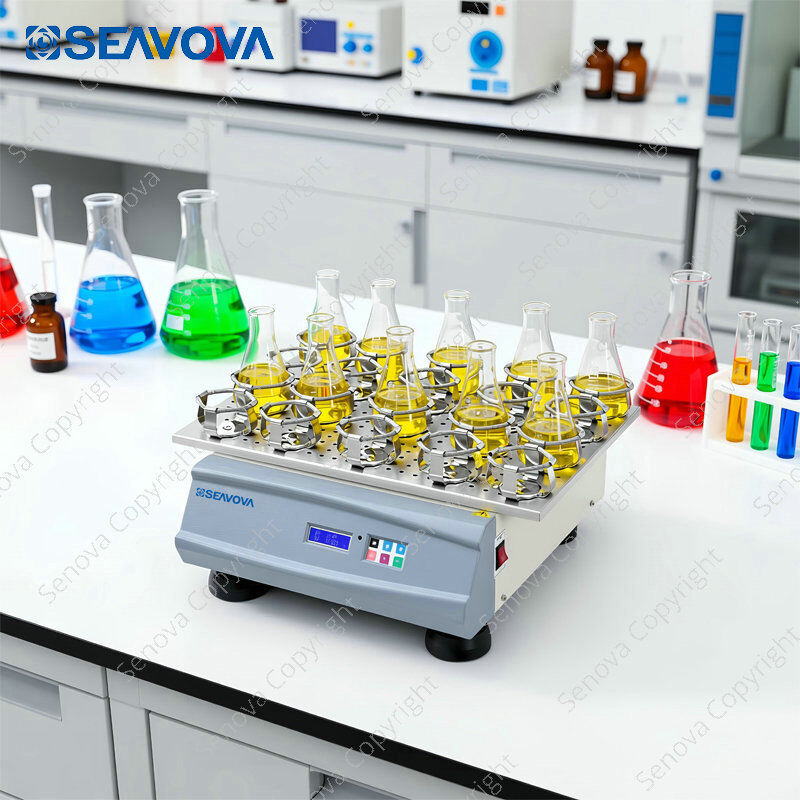

Serving as a core device for liquid sample processing, the laboratory shaker provides consistent agitation. Whether as a benchtop unit or a free-standing floor model, it operates by moving sample containers in orbital or linear paths. This action is designed to achieve complete mixing, promote necessary gas exchange in biological systems, and maintain uniform suspensions. The consistency it provides is a key factor in experimental reproducibility across scientific disciplines.
The functionality is rooted in creating a standardized dynamic environment. Mechanical agitation replaces variable manual techniques. The orbital shaker is the workhorse for general mixing and culture work. Rocking platforms offer a gentler alternative. Incubator shakers provide integrated control over temperature and agitation, essential for many microbiological and biochemical incubations. Modern features like programmable memory slots and computer connectivity allow for sophisticated protocol management and documentation.
Applications are wide-ranging. Shakers are essential for aerobic cultivation of microorganisms in bioprocessing. They are used in pharmacology for studying drug dissolution profiles. In molecular biology, they are employed for membrane-based hybridization assays. Important performance features include a consistent shaking speed that does not fluctuate with load, a timer capable of long-duration runs, and a design that ensures reliable operation in environments with fluctuating ambient temperatures.
