SENOVA BIOTECH (SHANGHAI) CO., LTD.
Product Details
Place of Origin: China
Brand Name: Senova
Certification: CE
Model Number: SFS-702
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Available upon request
Packaging Details: plywood case
Delivery Time: 5-20 working days
Payment Terms: T/T
Supply Ability: 100 units
Shaking Range: |
30~300rpm |
Shaking Mode: |
Orbital |
Maximum Load: |
5000mlx6, 1000mlx24,500mlx35, 250mlx54 |
Orbital Diameter: |
50mm |
Rotary Speed: |
30-300rpm |
Time Range: |
0-9999 Hr Or 0-9999 Min |
Data Connector: |
USB |
Power Supply: |
220V/50Hz, 220V/60Hz, 110V/60Hz |
Shaking Range: |
30~300rpm |
Shaking Mode: |
Orbital |
Maximum Load: |
5000mlx6, 1000mlx24,500mlx35, 250mlx54 |
Orbital Diameter: |
50mm |
Rotary Speed: |
30-300rpm |
Time Range: |
0-9999 Hr Or 0-9999 Min |
Data Connector: |
USB |
Power Supply: |
220V/50Hz, 220V/60Hz, 110V/60Hz |

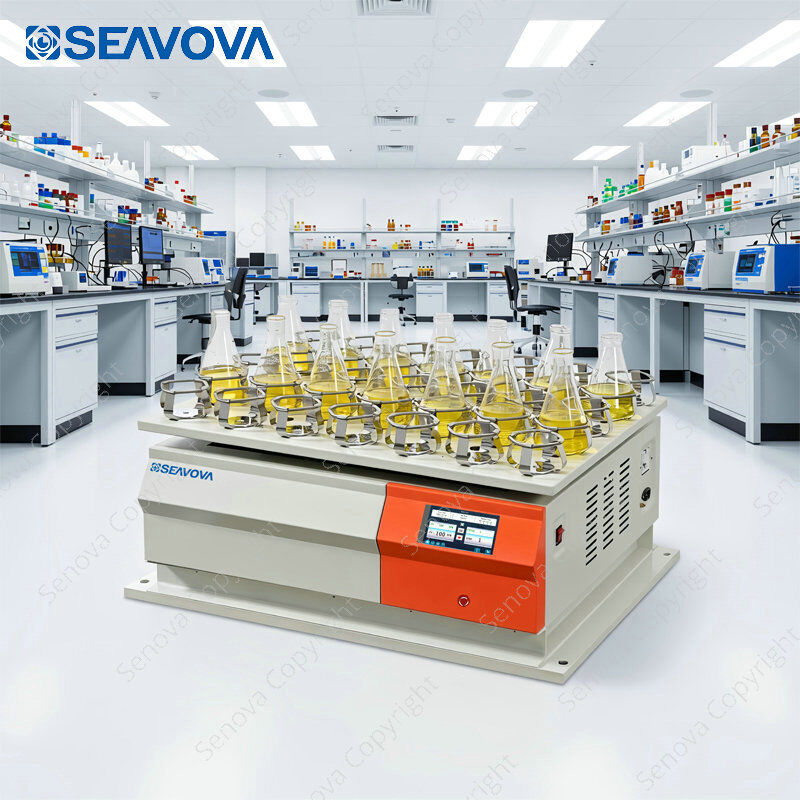

Big Capacity Single-deck Floor Orbital Shaker SFS-702
Main Features
Technical Data
| Control | P.I.D. |
|---|---|
| Display | LCD |
| Program Control | 8 segments (user programmable) |
| Safety Protection | Automatic stop and start, timing, time display, power-off recovery, parameter memory |
| Auxiliary Function | Monitoring timer, Independent over-speed acoustic/visual alarm, independent current leakage and over-load protection |
| Convection Mode | Natural Convection |
| Shaking Mode | Orbital |
| Timing Range | 0-999.59 hr/Continuous |
| Drive | Single-shaft balance device/Linear(Reciprocating) |
| Working Environment | 15℃-35℃ |
| Speed Range(rpm) | 30-300 |
| Speed Accuracy | ±1rpm |
| Orbit | Φ50mm |
| Capacity | 5000mlx6, 1000mlx24,500mlx35, 250mlx54 |
| Platform Size(mm) | 840x620 |
| Platform Qty. | 1 |
| N.W./G.W. (Kg) | 216/245 |
| Overall Dimensions(DxWxH,mm) | 680x615x300 |
| Packing Size(LxWxH,cm) | 95x70x58 |
| Power | 80W |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Construction | Steel with powder coating |
Introduction about laboratory shaker
Acting as a cornerstone for sample preparation, laboratory shakers (benchtop/floor) provide controlled agitation through orbital or linear movement. This mechanical action is essential for processes requiring uniform liquid environments, such as cell growth, extraction, and diagnostic testing. By automating this step, shakers enhance throughput and reliability.
The instrument provides consistent, reproducible motion, eliminating manual variability. Configurations include standard orbital, low-temperature, and high-force shakers. Digital control systems offer accuracy in parameter management, standardizing protocols across experiments.
Its utility is shown in diverse settings: fermentation research, liquid-liquid partitioning, histology. Attributes include a wide speed range, extended timer capabilities, and user-safe design with covered drive mechanisms.
