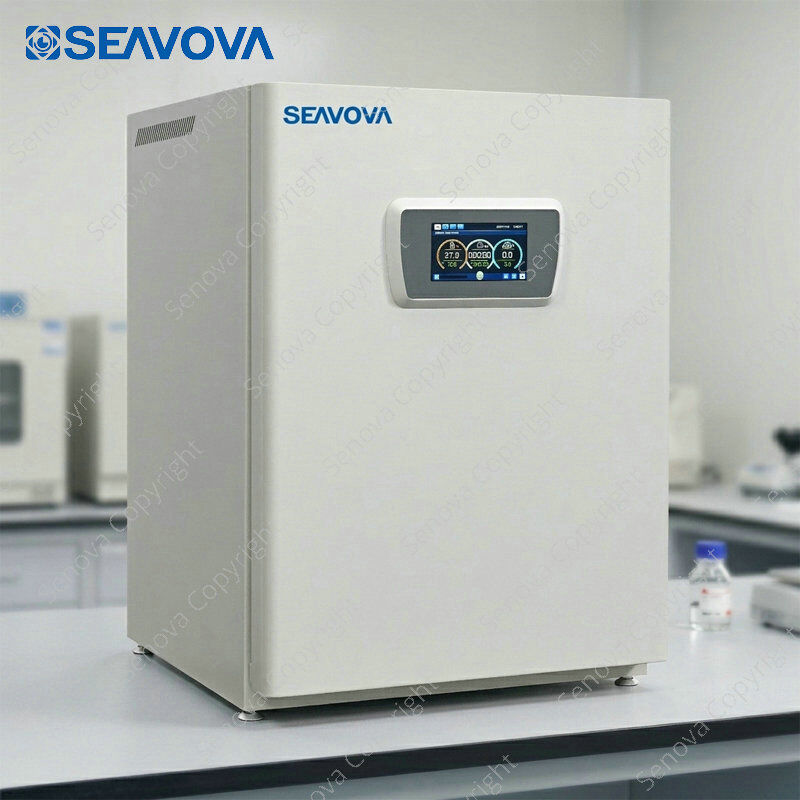

175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization

Product Details

Place of Origin: China

Brand Name: SENOVA (SEAVOVA)

Certification: CE

Model Number: NeuIncu-214R

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Available upon request

Packaging Details: Plywood case

Delivery Time: Approx. 10 working days

Payment Terms: T/T

Supply Ability: 100 units/month

Get Best Price
Chat Now
Specifications
Highlight:

175L CO2 Incubator

,

CO2 Incubator 90C Sterilization

,

Air Jacket CO2 Incubator

Humidity Control:
95% Relative Humidity
Temperature Range:
3°C Above Ambient To 60°C
Co2 Sensor Type:
Infrared (IR) Sensor
Heating Method:
Air-jacketed PID Control
Warranty:
1 Year
Alarm System:
Audible And Visual Alarms For Temperature And CO2 Deviations
Door Type:
Double-pane Glass Door With Inner Door
Chamber Volume:
1750L
Exterior Dimensions:
516x543mmx636 (WxDxH,mm)
Humidity Method:
Natural Vaporization
Power Rating:
700W
Voltage:
110V/60Hz Or 220V/50Hz
Humidity Control:
95% Relative Humidity
Temperature Range:
3°C Above Ambient To 60°C
Co2 Sensor Type:
Infrared (IR) Sensor
Heating Method:
Air-jacketed PID Control
Warranty:
1 Year
Alarm System:
Audible And Visual Alarms For Temperature And CO2 Deviations
Door Type:
Double-pane Glass Door With Inner Door
Chamber Volume:
1750L
Exterior Dimensions:
516x543mmx636 (WxDxH,mm)
Humidity Method:
Natural Vaporization
Power Rating:
700W
Voltage:
110V/60Hz Or 220V/50Hz
Description
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket Cell Culture CO2 Incubator ST-214R with 90℃ Moist Heat Sterilization
Features:
  • 7” touch screen LCD
  • Power coated housing
  • SUS304 mirror-polished chamber with round corners
  • Programmable PID control
  • Real time parameter display and curve
  • Automatic data and log recording with direct USB export
  • Infrared sensor for precise CO2 control with a long lifespan
  • 90℃ high-temperature moist heat sterilization-High penetration capability to effectively eliminate bacteria, fungi, spores, and other microbial contaminants
  • Air jacket,6-side direct heating, excellent temperature uniformity and fast recovery
  • HEPA inlet and chamber filter providing Class 100 cleanness
  • 3-grade access authorization and history data log query
  • Audit Trail Capability-Fully compliant with GMP standards
  • Anti-tilt shelf design for safe and effortless sample handling
  • Convenient humidity pan for simple and intuitive operation
  • Power-failure parameter memory
  • Stackable design for max. 2 units
  • Double-layer toughened safety inner glass door with calibration port
  • Refrigeration system with CFC free refrigerant
  • Over temperature protection and safety power cut-off
  • Audio and visual alarm for parameter deviation
  • Current leakage, over temperature, over current protection.
  • CO2 concentration range 0~20%
  • Standard configuration:
  • USB data export interface,1xHEPA filter, 3x SUS304 shelves, 1x SUS304 humidity tray, R485 port, LAN/WAN port
  • Optional:
  • integrated thermal printer, CO2 regulation valve, Oxygen control (0 to 20%)
Specifications

Model

ST-214R

Control

PID

Display

7”color LCD touch screen

Heating

Air jacket, 6-side heating

Sterilization

90℃ high-temperature moist heat

Capacity

175L

Shelf size

480x478mm

Shelf Qty.

3PCS

Refrigerant

R134a

Temperature Control Range

RT+3℃ to 60℃

Temperature Control Accuracy

±0.1℃

Temperature Uniformity

±0.3℃(@ 37℃)

CO2 Sensor

IR

CO2 Control Range

0-20%

CO2 Control Accuracy

±0.1%

CO2 Uniformity

±0.5%(@ 5%)

Humidifying Method

Natural evaporation via bottom water pan

Humidity Control Range

95% RH

N.W.(Kg)/G.W.(Kg)

100/120

Chamber Dimensions

680x685x900 (WxDxH,mm)

Overall Dimensions

516x543mmx636 (WxDxH,mm)

Packing Size

60x65x80 ( LxWxH,cm)

Power (W)

700

Power Supply

AC 220V±10%/50Hz or 60Hz. Optional: AC110V±10%/60Hz

Details:
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization175L Air Jacket CO2 Incubator ST-214R with 90C Moist Heat Sterilization
Introduction about CO2 incubator

Essential for modern bioscience, the CO2 incubator creates and maintains a physiologically consistent atmosphere for cultivating living cells and tissues. Its core function lies in regulating three critical parameters: temperature, humidity, and CO2 levels. The addition of CO2 is not merely for atmosphere; it serves as a vital pH stabilizer by reacting with water in the culture medium to create a bicarbonate buffer system.

Modern devices achieve exceptional precision using infrared sensors for gas measurement and ensure chamber-wide uniformity through gentle air circulation. A major focus is preventing microbial contamination, addressed via sealed designs, HEPA-filtered air, and dry-heat sterilization at temperatures up to 180°C. Consequently, this equipment is a cornerstone in applications ranging from basic cell culture and microbiology to specialized domains like VIF, tissue engineering and immunology,in the field of life science, where uncontaminated, stable growth conditions are non-negotiable.
