Fully Automatic Horizontal Autoclave 200L Horizontal Autoclave Sterilizer

Product Details

Place of Origin: Shanghai, China

Brand Name: Senova

Certification: CE

Model Number: HCPS-B200

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Available upon request

Packaging Details: Wooden (Carton: Portable)

Delivery Time: 10-15 working days

Payment Terms: T/T

Supply Ability: 500 units/month

Get Best Price
Chat Now
Specifications
Highlight:

Fully Automatic Horizontal Autoclave 200L

,

200L Horizontal Autoclave Sterilizer

,

Horizontal Autoclave 200L

Description

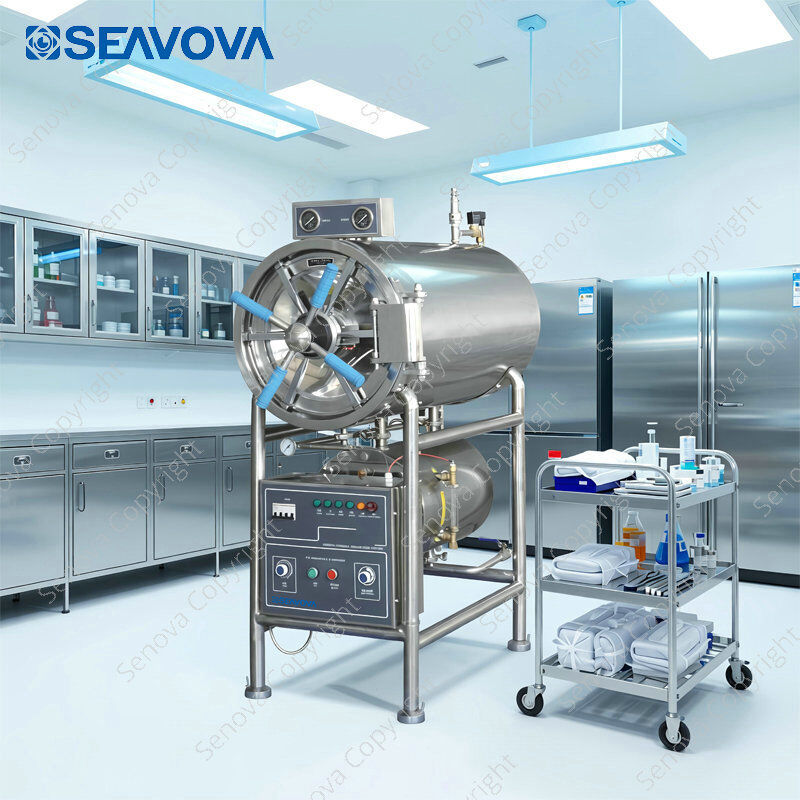

Fully Automatic Horizontal Autoclave 200L Horizontal Autoclave Sterilizer
200L Horizontal Cylindrical Autoclave HCPS-B200
Features:
  • Employs efficient gravity exchange to purge cold air, creating optimal conditions for reliable sterilization.
  • Automated control dynamically manages steam inlet and outlet to maintain precise temperature parameters.
  • Designed for versatile use in sterilizing surgical tools, lab glassware, textiles, and biological media.
  • Offers user-friendly automatic control and a practical drying cycle for post-sterilization processing.
  • Built-in safety mechanisms include over-temperature/pressure protection and low-water automatic shutdown with alarm.
  • Pressure-sensitive door lock ensures it remains sealed above 0.027MPa, preventing unsafe access.
  • Safety valve automatically activates at 0.24MPa, venting excess pressure to the water tank.
  • Features a robust, fully stainless steel build for long-term performance and easy maintenance.
Specifications
Model HCPS-B200
Chamber volume 200L
Chamber size φ515*1000mm
Working pressure 0.22MPa
Working temperature 134℃
Temperature control range 105℃ - 134℃
Sterilization time 0-60 min
Drying time 0-60 min
Heat average ≤±2℃
Power 9KW,380V/50Hz
Dimensions 1400*670*1650
Packing size 1560*820*1930
G.W/N.W(Kg) 350/260

Fully Automatic Horizontal Autoclave 200L Horizontal Autoclave Sterilizer 0

Introduction about autoclave

A cornerstone of modern aseptic practice, the autoclave is a pressurized device that uses steam to achieve sterilization. The mechanism involves exposing items to saturated steam at high temperature, which coagulates microbial proteins and dissolves membranes. Operating parameters are typically 121°C at 15 psi for a minimum of 15-30 minutes, depending on the load. The cycle is designed to overcome potential barriers to sterility. The initial phase removes air, a critical step because air pockets insulate items from steam. The main sterilization phase then holds the conditions. The final phase involves exhaust and often a vacuum-assisted dry cycle. Its use is widespread: sterilizing surgical instruments in operating rooms, dental tools in clinics, and glassware in research labs. It is also the approved method for treating many categories of biohazardous waste.

Beyond microbiology, it aids in manufacturing processes. The autoclave is favored because it is a non-selective, broad-spectrum sterilization method. It inactivates all vegetative bacteria, viruses, fungi, and, importantly, bacterial endospores, which are the most resistant life forms. This comprehensive efficacy, combined with its ability to process diverse materials, secures its critical role.
