SENOVA BIOTECH (SHANGHAI) CO., LTD.
Product Details
Place of Origin: China
Brand Name: Senova
Certification: CE
Model Number: NovaIncu-750B
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Available upon request
Packaging Details: plywood case
Delivery Time: 5-20 working days
Payment Terms: T/T
Supply Ability: 100 units

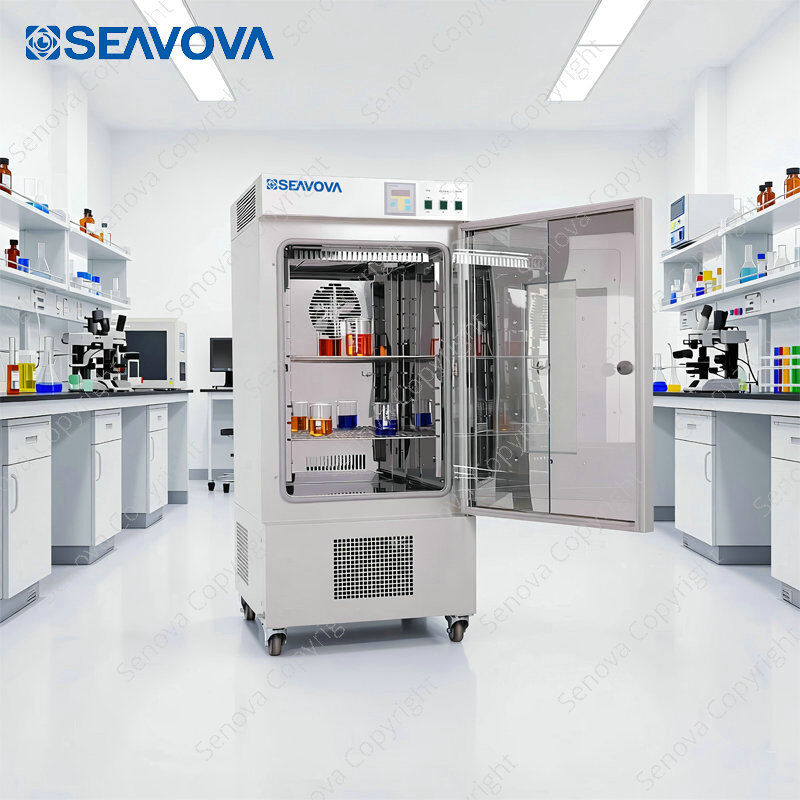

750L Low Temperature Refrigerated BOD Incubator NovaIncu BOD-750B(Programmable)
Features:
Combines a stainless steel working chamber with an insulated powder-coated cabinet.
Double-door design and double-glazed window significantly improve thermal efficiency.
The compressor system is optimized for low energy consumption and long service life.
State-of-the-art 3D heating minimizes recovery time after door openings.
User-friendly design includes interior illumination and a standard power socket.
Precision control is achieved through a fast CPU and a high-sensitivity Pt100 sensor.
Offers sophisticated programming capabilities for up to 99 hours of automated operation.
Comprehensive safety alarms cover temperature limits, sensor failure, and system checks.
Equipped with practical tools for calibration and saving frequently used programs.
Can be enhanced with optional redundant safety controls and a UV sterilization system.
Specifications
|
Model |
NovaIncu BOD-750B |
|
|
Chamber volume (L) |
750 |
|
|
Temp. Control Range |
0℃～70℃ |
|
|
Temperature |
Resolution |
0.1℃ |
|
Fluctuation |
±0.5℃ |
|
|
Uniformity |
± 1.5℃ at 37℃ |
|
|
controller |
PID microprocessor control, soft touch, LED display |
|
|
Sensor |
PT100 |
|
|
Timer |
Power-on, power off and working. Timing range: 1min-99hr |
|
|
Material |
Internal |
304 stainless steel |
|
External |
Steel (powder coating) |
|
|
Dimensions (WxDxH,cm) |
Internal |
85×80×110 |
|
External |
100×105×188 |
|
|
Net Weight(Kg) |
235 |
|
|
Consumption Power(W) |
2260 |
|
|
Shelf Size(mm) |
828×780 |
|
|
Shelf Qty(Standard/Max.) |
3/17 |
|
|
Power Supply |
220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) |
|
*Notes:
10-segment temperature control program to realize temperature curve program running.
The inflow and outflow air speed is also adjustable.
39 Introduction about incubator
The generation of stable, clonal animal cell lines—a cornerstone of biopharmaceutical production and functional genetics—is a process critically dependent on incubator performance. After transfecting cells with a gene of interest (e.g., for a therapeutic antibody), a selection agent (like an antibiotic) is added.
The rare cells that have integrated the gene must proliferate from a single cell into a colony. This occurs over 1-3 weeks in a CO2 incubator. The stability of the environment is paramount: pH shifts from CO2 fluctuation can kill fragile, single cells; evaporation from low humidity can concentrate toxic selection agents. Many protocols now use cloning cylinders or limiting dilution in 96-well plates, which are entirely incubated within this controlled environment.
For the highest assurance of clonality, automated cell imagers are often housed inside incubators to monitor single cells without disturbing them. Once colonies form, they are picked and expanded, again within the incubator. The final clonal cell line’s productivity and stability are directly influenced by the consistency of conditions during this vulnerable selection and expansion phase. A high-quality, stable incubator is therefore the unsung hero in developing the cell lines that produce blockbuster biologic drugs.
