SENOVA BIOTECH (SHANGHAI) CO., LTD.
Product Details
Place of Origin: China
Brand Name: Senova
Certification: CE
Model Number: NovaDryer-FD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Available upon request
Packaging Details: Plywood case
Delivery Time: 5-20 working days
Payment Terms: T/T
Supply Ability: 500 units/month
Product Name: |
Food Industrial Freeze Dryer |
Load Capacity: |
30kg/batch |
Cold Trap Temperature: |
<-65°C |
Shelf Temperature: |
-45°C To +80°C |
Material: |
SUS304 Stainless Steel |
Control System: |
PLC |
Application: |
Food, Fruit, Vegetable, Coffee,Juice |
Drying Time: |
24 Hours Approx. |
Product Name: |
Food Industrial Freeze Dryer |
Load Capacity: |
30kg/batch |
Cold Trap Temperature: |
<-65°C |
Shelf Temperature: |
-45°C To +80°C |
Material: |
SUS304 Stainless Steel |
Control System: |
PLC |
Application: |
Food, Fruit, Vegetable, Coffee,Juice |
Drying Time: |
24 Hours Approx. |

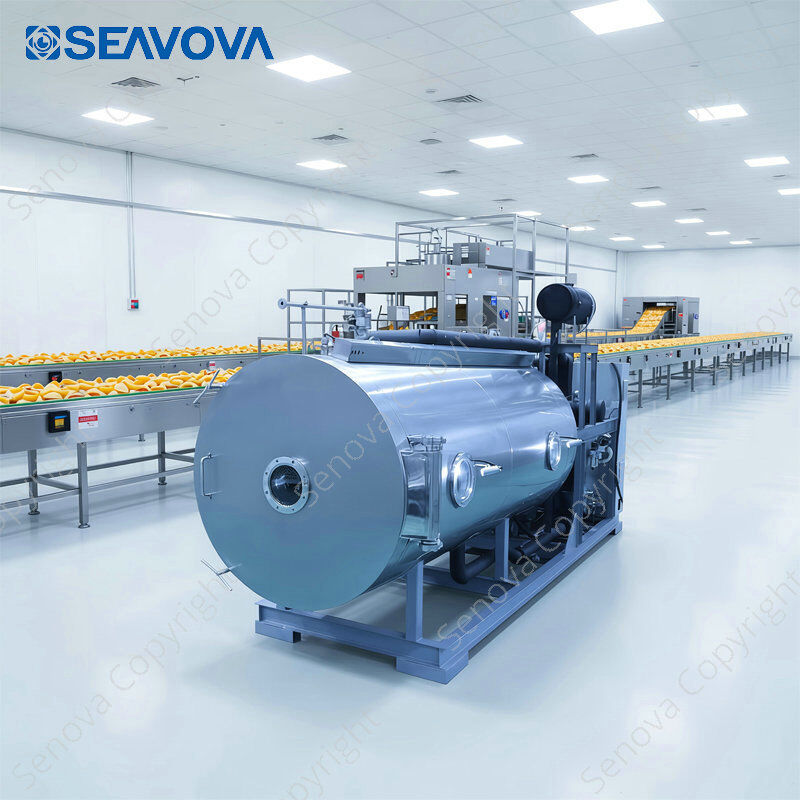

30Kg Food Industrial Freeze Dryer / Lyophilizer NovaDryer-FD30
Feature
Specifications
| General Information | ||||
| Model | NovaDryer-FD30 | |||
| Load Capacity(approx.) | 30Kg | |||
| Maximum ice capacity | 45kg | |||
| Control | Microprocessor | |||
| Dimensions (Lx W x H,mm) | 4100*1400*2000 | |||
| Weight (approx.) | 3,000kg | |||
| Chamber | ||||
| Chamber type | Cylindrical(drum) | |||
| Maximum design pressure | Normal pressure | |||
| Maximum design temperature | Room temperature | |||
| Finish | Ra≤0.5um (0.5Mircon) | |||
| Validation port | Included (1, on the top of chamber) | |||
| Viewing port | Yes, with illumination | |||
| Qty. | 1 | |||
| Location | Side | |||
| Dimensions | DN200 (mm) | |||
| Material | ||||
| Internal | SUS 304 | |||
| Insulation | Polyisocyanurate foam | |||
| External cover | SUS 304 | |||
| Door | ||||
| Finish | Ra≤0.5um (0.5Mircon) | |||
| Viewing port | Included | |||
| Qty. | 1 | |||
| Location | On height 1.5m (approx.) | |||
| Open direction | Right (face to door, hinge on right side) | |||
| Open angle | More than 110° | |||
| Gasket | O-shaped silicone rubber single gasket | |||
| Locking arrangement | Auxiliary manual handle | |||
| Material | ||||
| Internal | SUS 304 | |||
| Insulation | Polyisocyanurate foam | |||
| External cover | SUS 304 | |||
| Shelves | ||||
| Temperature range | -45°C to + 80°C | |||
| Shelf temp. sensors (shelves) | 3 (Silicone oil inlet and outlet) | |||
| Sensors | 3 | |||
| Qty. of shelves | 7+ 1 (upper radiant shelf) | |||
| Dimension (LxWxT,mm) | 650 x650x15 | |||
| Shelf area (M2) | 2.96 | |||
| Shelf space(mm) | 70 | |||
| Tray size(mm) | 320x645x30 | |||
| Tray Number(PCS) | 14 | |||
| Hose of flexible connection | Welding | |||
| Finish | Ra≤0.5um (0.5Micron) | |||
| Level | ≤±0.5mm/m | |||
| Material | SUS 304 | |||
| Condenser | ||||
| Condenser type | Cylindrical | |||
| Viewing port | Illuminated | |||
| Qty. | 1 | |||
| Location | Easily observe the whole inside condenser | |||
| Dimensions | DN200 (mm) | |||
| Final temperature | <-65°C | |||
| Cooling time (+20 to -40°C) | ≤30 minutes (empty) | |||
| Maximum design pressure | Normal pressure | |||
| Maximum design temperature | Room temperature | |||
| Finish | a≤0.5um (0.5Mircon) | |||
| Coiled pipe material | SUS 304 | |||
| Internal | SUS 304 | |||
| Insulation | Polyisocyanurate foam | |||
| External cover | SUS 304 | |||
| Shelf Heating /Cooling | ||||
| Circulation pump | ||||
| Brand | DF | |||
| Model | CDL8-3 | |||
| Type | Centrifugal pump | |||
| Qty. | 1 | |||
| Motor power | 1.1kW | |||
| Shelf heat exchanger | ||||
| Brand | Catro | |||
| Type | Sealed brazed stainless steel | |||
| Qty. | 1 | |||
| Heater | PID control | |||
| Maximum heating power | 6KW | |||
| Thermal fluid | Special heat conducting oil for freeze dryer | |||
| Shelf cooling time (+20°C to -40°C) | ≦60minutes (empty) | |||
| Heating rate | 1℃/min (approx.) | |||
| Refrigerating System | ||||
| Compressor | ||||
| Brand | Bitzer | |||
| Model | S4N-8.2Y | |||
| Type | Two-stage low-temperature piston compressor | |||
| Qty. | 1 | |||
| Motor power | 5.88kW | |||
| Refrigerant | HFC-free R507a | |||
| Main refrigerating units | ||||
| Thermostatic expansion valve | Danfoss | |||
| Solenoid valve | Danfoss | |||
| Service valve | Castel | |||
| Safety valve | Castel | |||
| Capped valve | Castel | |||
| Sight glass | Danfoss | |||
| Water cooling condenser | JD | |||
| Oil separator | Emerson | |||
| Gas-liquid separator | Fasike | |||
| Filter | Filter case: Fasike Filter core:Fasike | |||
| Vacuum System | ||||
| Final vacuum | ≤2.7*10 -2mbar | |||
| Evacuation time | ≤30minutes (1*103 mbar to 1*10-1 mbar) | |||
| Vacuum pump | ||||
| Brand | Baosi | |||
| Model | DRV60 | |||
| Type | Oil rotary | |||
| Qty. | 1 | |||
| Flowrate | 60m3/hr | |||
| Motor power | 2.2kw | |||
| Anti-suction valve | Included | |||
| De-icing | ||||
| Hot Water or Steam Inlet/Outlet Valves | ||||
| Brand | Lyofenik | |||
| Type | Pneumatic butterfly valve | |||
| Pneumatic System | ||||
| Gas source disposal unit | AIRTAC | |||
| Air pressure switch | EUROSWITCH | |||
| Pneumatic Valve | Lyofenik | |||
| Control System | ||||
| Software | FD-5000 | |||
| Automatic | Included | |||
| Manual | Included | |||
| PLC+PC (User programmable) | Omron (Wifi remote control) | |||
| Industrial personal computer | IPC | |||
| Vacuum gauge | Posifa | |||
| Temperature probe | PT100 | |||
| Breaker | schneider | |||
| Contactor | schneider | |||
| Relay | schneider | |||
| Safety System | ||||
| Vacuum failure protection | Included | |||
| Temperature failure protection | Included | |||
| Compressor protection | Included | |||
| Other motors protection | Included | |||
| Interlock protection | Included | |||
| Utility Requirement (Approx.) | ||||
| Electricity - total electrical load | 15.5kW (380V/50Hz,3 Phase/5 Wires),125A | |||
| Power Consumption | 11kW(Approx.) | |||
| Cooling water for refrigerant cooling | 6m3/hr (1.5≤P≤2 Bar, T≤28°C) | |||
| Cooling water pipe diameter (DN) | 40 | |||
| Water for de-icing | 0.3T/Batch (P≥3 Bar, T=80℃) | |||
| Compressed air for pneumatic valves | 60L/min(4≤P≤8 Bar) | |||
FAQ
Q: What is the HS code?
A: Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.
Q: How to get a quote and brochure?
A: Tell us the model and quantity. You'll receive a detailed quote with specs and brochure.
Q: Compatible with 110V/60Hz or 220V/60Hz?
A: Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.
Q: Operating vacuum level?
A: 15Pa (0.15 mbar).
Q: English version available?
A: Yes.
Q: Can the power plug be replaced?
A: Yes. We provide cords with various international plugs. Specify your standard.
Q: Ready to use upon delivery?
A: Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.
Q: Difficult to install for first-time users?
A: No. We provide a manual, picture checklist, and a setup video for easy installation.
Q: Can I get an oil-free vacuum pump?
A: Yes, as an optional upgrade for extra cost.
Q: What is the packaging?
A: Strong plywood crate for safe international shipping.
Q: Can it ship by air?
A: Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.
Q: Can we check quality before shipment?
A: Yes. We provide photos and videos of your actual unit for approval before shipping.
Q: Payment terms?
A: T/T (Bank Transfer).
Q: Delivery time?
A: 5-20 working days after payment, depending on order.
Q: Company location? Can we visit?
A: Based in Shanghai with a factory nearby. Visits are welcome.
Q: What certifications?
A: ISO 9001 and CE.
Q: After-sales service?
A: Includes online support, video training, quick spare parts supply, and optional factory training.
Q: Warranty?
A: 12-month standard warranty (14 months for stock orders). Lifetime maintenance support.
About Freeze Drying Technology
An ancient preservation process, freeze-drying (lyophilization) enhances portability by freezing materials and sublimating water via pressure reduction. It began with 13th-century Andean Indians and advanced in the 1950s. World War II saw its first application for blood plasma. Post-war, it became common in consumer foods. Albert Altmann freeze-dried organs in 1890; 1920s patents covered rabies virus freeze-drying. The 1950s introduced camping food uses. NASA employed it for astronaut food, famously with freeze-dried ice cream on space missions. Nestlé’s 1965 freeze-dried instant coffee mainstreamed it. Historically, Aztecs and Eskimos used similar techniques for biological samples. Modern processes freeze products in designed chambers with heating to create solid granules based on chamber speed and geometry.
Benefits include extended shelf life (7–8 times longer than fresh), nutritional preservation, cost savings, and convenience. Freeze-dried foods are nutritious, and dairy retains probiotics.
Senova freeze dryers, used globally in homes, labs, and industries for 15 years, provide reliable support across 80+ countries, with an EU office in 2024.
